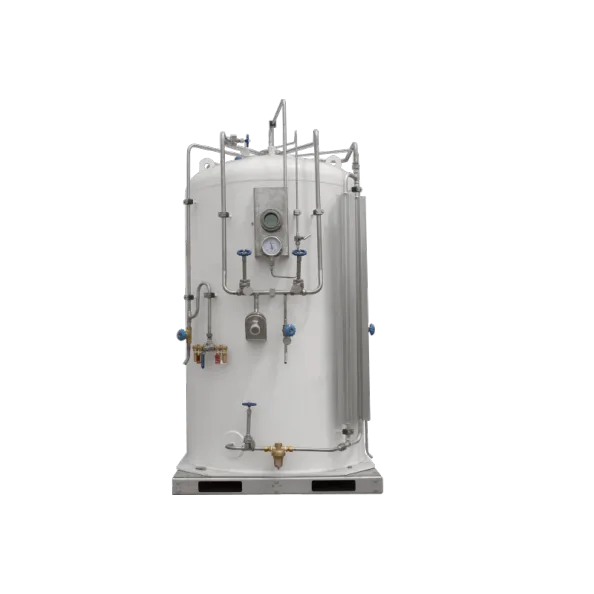

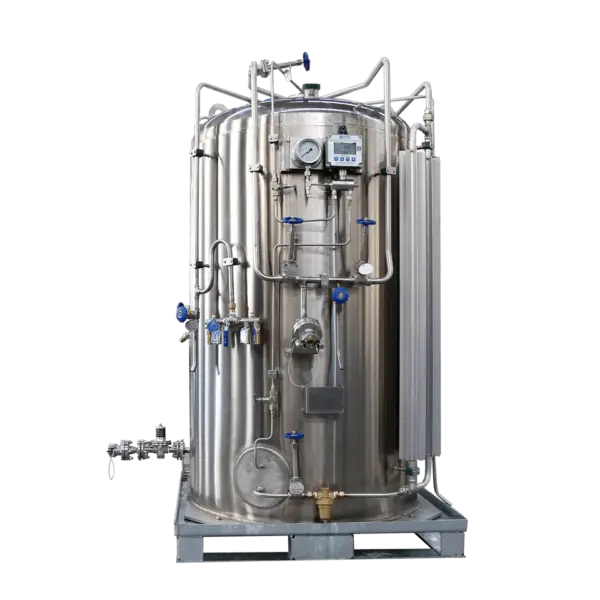

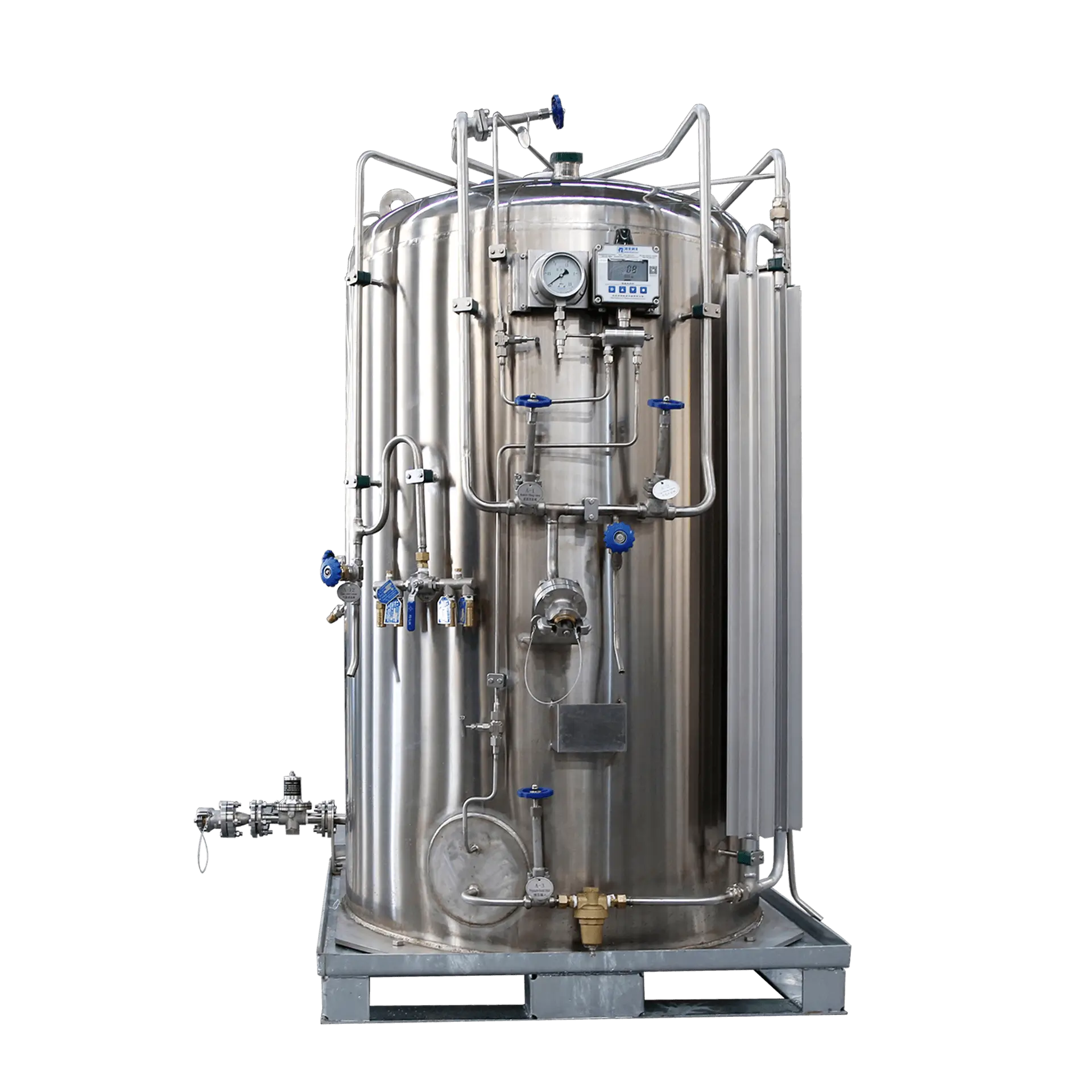

1m³ microbulk tank – RFCC

Micro-bulk Tank Main Technical Parameters:
Full Volume: 1,000L~10,000L
Work Pressure: 0.80MPa/1.60MPa/2.30MPa/3.45MPa
Filling Rate:90%
Inner Tank Design Temperature: -196℃
Shell Tank Design Temperature: -20℃~+50℃
Insulation: Vacuum with Multi-layer Wrapped
Stored Medium: LNG
Inner Tank Material: SS304 08 or SA240
Shell Tank Material: Q345R or SS304 08

SKU: 1m³ microbulk tank Category: Tags: ,

Brief Introduction:

The cryogenic liquid gas storage tank is composed of skid-mounted equipment, cryogenic liquid storage tank and pipeline system. It has the functions of storage, self-pressurization, vaporization, and can be equipped with pressure and liquid level remote transmission, metering and other equipment. Our micro-bulk tank is a combination of small volume storage tank, booster, evaporator and piping system into a centralized gas supply unit. We can provide edifferent solutions of skid based on different process requirements to achieve single, double or multiple gas mixing requirements.

Main Features:

It has Low evaporation rate, small floor area, centralized control and convenient operation. Compared with the traditional high-pressure steel gas cylinder, this product can greatly reduce the number of replacement, pollution and labor cost. This product can be filled by common transportation tanker/semi-trailer, which is convenient and fast.  We can provide users with on-site filling integrated solution and let you enjoy the centralized pipeline gas supply.

Micro-bulk Tank Main Technical Parameters:

Full Volume: 1,000L~10,000L

Work Pressure: 0.80MPa/1.60MPa/2.30MPa/3.45MPa

Filling Rate:90%
Inner Tank Design Temperature: -196℃
Shell Tank Design Temperature: -20℃~+50℃
Insulation: Vacuum with Multi-layer Wrapped
Stored Medium:LNG

Inner Tank Material: SS304 08 or SA240
Shell Tank Material: Q345R or SS304 08

Qualification Certification:

ASME VIII DIV.1, CE PED/TPED, Russia EAC, China GB, ISO9001:2015, ISO13485:2016, ISO14001:2015, ISO45001:2018

Technical Parameters of microbulk portable tanks

Geometric Volume: 1 m³

Work Pressure (MPa) Inner Outer Dimensions (mm) Gas Type Weight (kg)
≤0.80 SS30408 SS30408/Q345R 2085×1580×1160 LO2/LN2/LAR/LNG 926
≤1.60 SS30408 SS30408/Q345R 2085×1580×1160 LO2: 1083<br>LN2: 769<br>LAR: 1339<br>LNG: 404 926
≤2.30 SS30408 SS30408/Q345R 2085×1580×1160 LO2/LN2/LAR/LNG 926
≤3.45 SS30408 SS30408/Q345R 2085×1580×1160 LO2/LN2/LAR/LNG 1040
≤2.16 (LCO2) 16MnDR SS30408/Q345R 2085×1580×1160 LCO2: 1059 1045

Geometric Volume: 2 m³

Work Pressure (MPa) Inner Outer Dimensions (mm) Gas Type Weight (kg)
≤0.80 SS30408 SS30408/Q345R 2360×2140×1975 LO2/LN2/LAR/LNG 1398
≤1.60 SS30408 SS30408/Q345R 2360×2140×1975 LO2: 2017<br>LN2: 1433<br>LAR: 2495<br>LNG: 796 1398
≤2.30 SS30408 SS30408/Q345R 2360×2140×1975 LO2/LN2/LAR/LNG 1511
≤3.45 SS30408 SS30408/Q345R 2360×2140×1975 LO2/LN2/LAR/LNG 1695
≤2.16 (LCO2) 16MnDR SS30408/Q345R 2360×2140×1975 LCO2: 1915 2020

Geometric Volume: 3 m³

Work Pressure (MPa) Inner Outer Dimensions (mm) Gas Type Weight (kg)
≤0.80 SS30408 SS30408/Q345R 2560×2338×2143 LO2/LN2/LAR/LNG 1773
≤1.60 SS30408 SS30408/Q345R 2560×2338×2143 LO2: 3120<br>LN2: 2192<br>LAR: 3800<br>LNG: 1047 1810
≤2.30 SS30408 SS30408/Q345R 2560×2338×2143 LO2/LN2/LAR/LNG 1993
≤3.45 SS30408 SS30408/Q345R 2560×2338×2143 LO2/LN2/LAR/LNG 2246
≤2.16 (LCO2) 16MnDR SS30408/Q345R 2560×2338×2143 LCO2: 3166 2454

Geometric Volume: 5 m³

Work Pressure (MPa) Inner Outer Dimensions (mm) Gas Type Weight (kg)
≤0.80 SS30408 SS30408/Q345R 3086×2331×2325 LO2/LN2/LAR/LNG 2655
≤1.60 SS30408 SS30408/Q345R 3086×2331×2325 LO2: 5403<br>LN2: 3839<br>LAR: 6645<br>LNG: 1917 2745
≤2.30 SS30408 SS30408/Q345R 3086×2331×2325 LO2/LN2/LAR/LNG 2964
≤3.45 SS30408 SS30408/Q345R 3086×2331×2325 LO2/LN2/LAR/LNG 3405
≤2.16 (LCO2) 16MnDR SS30408/Q345R 3086×2331×2325 LCO2: 5085 3527

Geometric Volume: 7.5 m³

Work Pressure (MPa) Inner Outer Dimensions (mm) Gas Type Weight (kg)
≤0.80 SS30408 SS30408/Q345R 3170×2715×2450 LO2/LN2/LAR/LNG 3490
≤1.60 SS30408 SS30408/Q345R 3170×2715×2450 LO2: 8105<br>LN2: 5759<br>LAR: 10025<br>LNG: 3035 3581
≤2.30 SS30408 SS30408/Q345R 3170×2715×2450 LO2/LN2/LAR/LNG 3904
≤3.45 SS30408 SS30408/Q345R 3170×2715×2450 LO2/LN2/LAR/LNG 4550
≤2.16 (LCO2) 16MnDR SS30408/Q345R 3170×2715×2450 LCO2: 7950 5065

Geometric Volume: 10 m³

Work Pressure (MPa) Inner Outer Dimensions (mm) Gas Type Weight (kg)
≤0.80 SS30408 SS30408/Q345R 3950×2840×2800 LO2/LN2/LAR/LNG 4431
≤1.60 SS30408 SS30408/Q345R 3950×2840×2800 LO2: 10830<br>LN2: 7695<br>LAR: 13395<br>LNG: 3834 4981
≤2.30 SS30408 SS30408/Q345R 3950×2840×2800 LO2/LN2/LAR/LNG 5347
≤3.45 SS30408 SS30408/Q345R 3950×2840×2800 LO2/LN2/LAR/LNG 6450
≤2.16 (LCO2) 16MnDR SS30408/Q345R 3950×2840×2800 LCO2: 10592

The structure of the micro-bulk Tank

Piping system

The piping system mainly consists of liquid filling piping, pressurizing piping, liquid level meter piping, gas piping, liquid piping, auxiliary gas piping, and discharge piping (LNG).

1. Liquid filling pipeline: This system is mainly composed of top liquid inlet pipeline and bottom filling pipeline, including top liquid inlet shut-off valve (A-2), bottom liquid inlet shut-off valve (A-1), purge valve (A-7) and liquid filling connection device.

2. Pressurized pipeline: the system is a cryogenic liquid from the pressurized liquid inlet pipe connected to the external pipeline of “Ansoda”, through the supercharger input valve, filter, pressurized regulator, the supercharger into gas back to the internal “Ansoda”, make “Ansoda”. The process of self-pressurization is carried out by “ANSHUTA”.

3. Liquid level meter pipeline: composed of differential pressure liquid level meter and pressure gauge, can monitor the liquid level and pressure inside the tank.

4. Gas pipeline: connected with the liquid outlet pipe, when the gas consumption is large, open the gas valve (A-6), the pressure inside the tank will make the liquid enter the vaporizer from the container, and quickly vaporize into gas for customers to use.

5. Liquid pipeline: open the liquid discharge valve (A-13), you can use the cryogenic liquid directly.

6. Auxiliary gas pipeline: connected with the gas phase space in the tank, when the gas consumption is not large, you can directly use the auxiliary gas valve (A-19) to use gas.

7. Gas discharge pipeline: this pipeline is connected with the gas phase space on the top of the inner container, including the venting pipeline and the safety discharge pipeline.

 Air vent line: reduces the pressure in the gas phase space and lowers the gauge pressure. When the pressure at the top of the inner packagings is high when the tank is filled, the venting valve is opened to reduce the pressure in the gas phase space at the top of the inner packagings.

 Safety Drain Line: An overpressure relief device containing a safety valve and rupture disc to protect the inner packagings.
