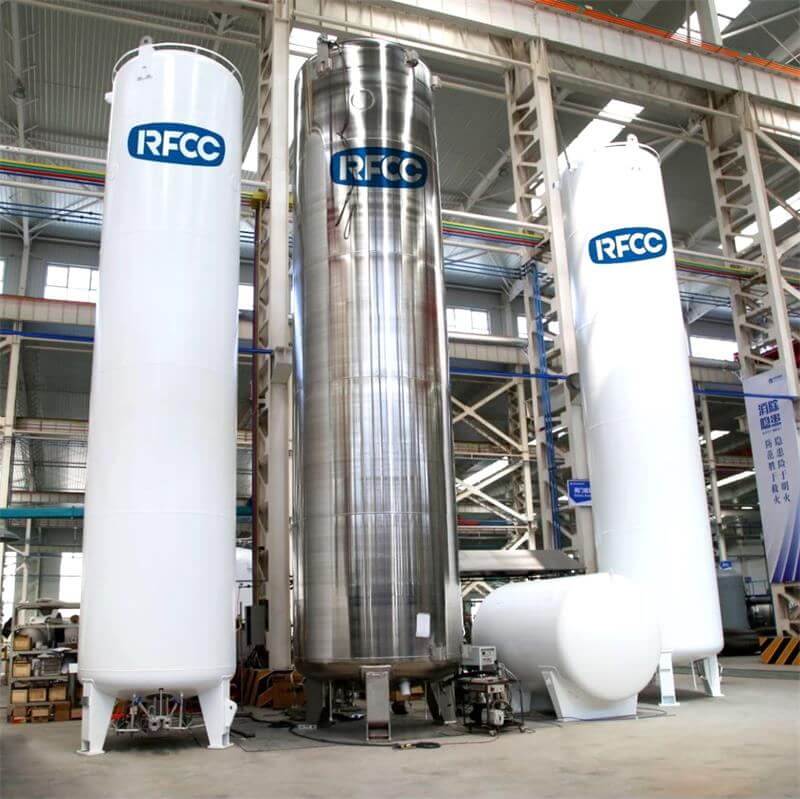

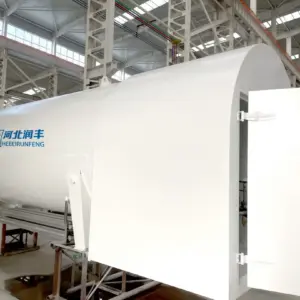

30m³ Cryogenic LNG Storage Tank - RFCC (RunFeng Cryogenic China)

Brief introduction:

This series of cryogenic storage tank is a superinsulated multi-layer storage tank, the inner vessel material is stainless steel SS30408, the outer vessel material is Q34SR or SS30408, can also be customized according to customers’ requirements. It is mainly used for storing NG in liquid state. The product is widely used in urban peak gas supply, the main source of pipeline gas supply, automobile refueling fuel, chemical industry, heating and other industries, and has been favored and praised by customers for many years. praised by customers for many years.

Main Features:

The cryogenic LNG storage tank is equipped with liquid inlet pipelines at the top and bottom to realize the unloading and filling of differential pressure and cryogenic liquid pump. A double safety valve (or bursting disc) is set to discharge in case of overpressure to protect the safety of the inner container. Vacuumize and measure the vacuum pipeline, ensure the insulation performance of the interlayer, and the explosion-proof device of the shell can discharge gas in case of leakage of the inner container to avoid serious damage and danger. It has the advantages of large reserves, low evaporation rate, safety and reliability.

Via Youtube

LNG Storage Tank Main Technical Parameters:

Full Volume: 10,000L~50,000L

Work Pressure: 0.80MPa/1.60MPa/2.30MPa/3.45MPa

Filling Rate:90%
Inner Tank Design Temperature: -196℃
Shell Tank Design Temperature: -40℃~+50℃
Insulation: Vacuum with Multi-layer Wrapped
Stored Medium: LNG,Liquid Ethylene,Liquid Hexafluoropropene

Inner Tank Material: SS304 08 or SA240
Shell Tank Material: Q345R or SS304 08

Qualification Certification:

ASME VIII DIV.1, CE PED/TPED, Russia EAC, China GB, ISO9001:2015, ISO13485:2016, ISO14001:2015, ISO45001:2018

Production Information:

The structure of the Cryogenic Storage Tank

The storage tank and supercharger consist of integrated components that allow the supply of liquid or gas without the need for external power, ensuring the purity of the discharged liquid or gas. Additionally, they are equipped with a pressure conditioning installation, enabling users to adjust the conditioning valve (T) to achieve the desired pressure for liquid discharge. This ensures stable pressure and convenient operation. The storage tank also features a liquid filling joint for tank cars, facilitating the transfer of liquid to vaporizers and tank cars.

The tank is equipped with top and bottom liquid inlet pipelines, which can realize pressure difference and low temperature liquid pump unloading and filling;

The liquid outlet of the storage tank can supply gas directly or enter the cryogenic pump for external gas supply;

The storage tank is equipped with gas-phase pipelines, which can realize gas discharge, safe release, pressurization and gas return after pumping;

The storage tank is equipped with an overflow pipeline to avoid overfilling when unloading and filling;

The storage tank is equipped with double safety valves (or rupture discs) to discharge when overpressure to protect the safety of the inner container;

The storage tank is equipped with a pressure gauge to display the internal pressure in real time, which should be checked regularly according to regulations;

The storage tank is equipped with a liquid level meter to display the internal medium stock, which is used for reference and not for measurement;

The tank is equipped with vacuumizing and measuring vacuum pipelines to ensure the insulation performance of interlayer;

The tank is equipped with shell explosion-proof device to discharge gas in case of leakage of inner container to avoid serious damage and danger;

The interlayer of storage tank is high vacuum multi-layer winding insulation, which has small volume, good insulation effect.

Note: the parameters of safety valve shall not be changed at will and shall be calibrated regularly, otherwise it will cause safety accidents.
