Brief introduction:

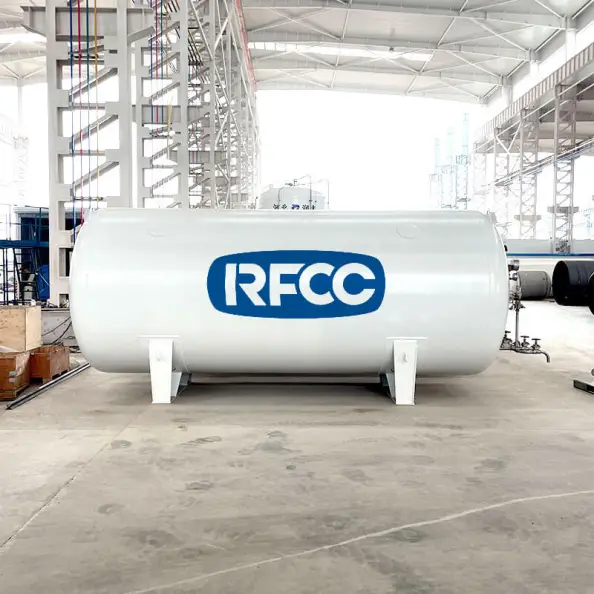

Three-cubic horizontal low-temperature storage tank is a double-layer vacuum insulated storage tank for storing liquid oxygen, nitrogen, argon, carbon dioxide and other media. It is one of our main products. This type of carbon steel tank is light in weight and strong in strength. Our products are mainly used in welding, food, plant breeding, engineering construction and other fields. The high vacuum multi-layer winding technology is adopted to make the insulation performance better and the vacuum service life longer. Customized production can be carried out according to different customer use environments.
Main Features:
The cryogenic storage tank is equipped with liquid inlet pipelines at the top and bottom to realize the unloading and filling of differential pressure and cryogenic liquid pump. A double safety valve (or bursting disc) is set to discharge in case of overpressure to protect the safety of the inner container. Vacuumize and measure the vacuum pipeline, ensure the insulation performance of the interlayer, and the explosion-proof device of the shell can discharge gas in case of leakage of the inner container to avoid serious damage and danger. Lox Cryogenic Pressure Vessel has the advantages of large reserves, low evaporation rate, safety and reliability.
Cryogenic Storage Tank Main Technical Parameters:
Full Volume: 1,000L~100,000L
Work Pressure: 0.80MPa/1.60MPa/2.30MPa/3.45MPa
Filling Rate:95%
Inner Tank Design Temperature: -196℃
Shell Tank Design Temperature: -40℃~+50℃
Insulation: Vacuum with Multi-layer Wrapped
Stored Medium: LO2,LN2,LAr
Inner Tank Material: SS304 08 or SA240
Shell Tank Material: Q345R or SS304 08
Qualification Certification:
ASME VIII DIV.1, CE PED/TPED, Russia EAC, China GB, ISO9001:2015, ISO13485:2016, ISO14001:2015, ISO45001:2018
Production Information:
| Horizontal cryogenic storage tank technical information sheet | ||||||||
| Geometric Volume |
Work Pressure （MPa） |
Liquid Gases Weight（kg） | Tare Weight （kg） |
Inner vessel | Outer vessel | Overall Dimensions （mm） |
||
| LO2 | LN2 | LAR | ||||||
| 3 | ≤0.80 | 3237 | 2300 | 4004 | 1672 | SS30408 | SS30408/Q345R | 3350*1920*1700 |
| ≤1.60 | 1673 | |||||||
| ≤2.30 | 1812 | |||||||
| ≤3.45 | 2097 | |||||||
| 5 | ≤0.80 | 4925 | 3499 | 6091 | 2503 | SS30408 | SS30408/Q345R | 3570*2440*2112 |
| ≤1.60 | 2595 | |||||||
| ≤2.30 | 2815 | |||||||
| ≤3.45 | 2944 | |||||||
| 10 | ≤0.80 | 10818 | 7686 | 13380 | 4112 | SS30408 | SS30408/Q345R | 6080*2362*2200 |
| ≤1.60 | 4203 | |||||||
| ≤2.30 | 4679 | |||||||
| ≤3.45 | 5634 | |||||||
| 20 | ≤0.80 | 21660 | 15390 | 26790 | 5238 | SS30408 | SS30408/Q345R | 10495*2362*2200 |
| ≤1.60 | 5329 | |||||||
| ≤2.30 | 6182 | |||||||
| ≤3.45 | 7894 | |||||||
| 30 | ≤0.80 | 32490 | 23085 | 40185 | 9385 | SS30408 | SS30408/Q345R | 12300*3000*2600 |
| ≤1.60 | 11921 | |||||||
| ≤2.30 | 12936 | |||||||
| 50 | ≤0.80 | 54150 | 38475 | 66975 | 16396 | SS30408 | SS30408/Q345R | 11600*3500*3200 |
| ≤1.60 | 19587 | |||||||
| 60 | ≤0.80 | 64980 | 46170 | 80370 | 18171 | SS30408 | SS30408/Q345R | 14300*3500*3200 |
| ≤1.59 | 21546 | |||||||
| 80 | ≤0.80 | 87107 | 61892 | 107738 | 26626 | SS30408 | SS30408/Q345R | 133830*4000*3700 |
| ≤1.59 | 28460 | |||||||
| 100 | ≤0.80 | 104500 | 76950 | 133950 | 32300 | SS30408 | SS30408/Q345R | 16600*4000*3700 |
| ≤1.59 | 34551 | |||||||
| Note: The above technical parameters may be changed without prior notice due to modification and development. If there is any change, please refer to the confirmed drawing. | ||||||||
The structure of the Cryogenic Storage Tank
The storage tank and supercharger consist of integrated components that allow the supply of liquid or gas without the need for external power, ensuring the purity of the discharged liquid or gas. Additionally, they are equipped with a pressure conditioning installation, enabling users to adjust the conditioning valve (T) to achieve the desired pressure for liquid discharge. This ensures stable pressure and convenient operation. The storage tank also features a liquid filling joint for tank cars, facilitating the transfer of liquid to vaporizers and tank cars.
The tank is equipped with top and bottom liquid inlet pipelines, which can realize pressure difference and low temperature liquid pump unloading and filling;
The liquid outlet of the storage tank can supply gas directly or enter the cryogenic pump for external gas supply;
The storage tank is equipped with gas-phase pipelines, which can realize gas discharge, safe release, pressurization and gas return after pumping;
The storage tank is equipped with an overflow pipeline to avoid overfilling when unloading and filling;
The storage tank is equipped with double safety valves (or rupture discs) to discharge when overpressure to protect the safety of the inner container;
The storage tank is equipped with a pressure gauge to display the internal pressure in real time, which should be checked regularly according to regulations;
The storage tank is equipped with a liquid level meter to display the internal medium stock, which is used for reference and not for measurement;
The tank is equipped with vacuumizing and measuring vacuum pipelines to ensure the insulation performance of interlayer;
The tank is equipped with shell explosion-proof device to discharge gas in case of leakage of inner container to avoid serious damage and danger;
The interlayer of storage tank is high vacuum multi-layer winding insulation, which has small volume, good insulation effect.
Note: the parameters of safety valve shall not be changed at will and shall be calibrated regularly, otherwise it will cause safety accidents.
